Table of Earthing Particulars

Design rules: Deutsche Bahn AG, Guideline 819.0102 (dated 01.03.2005)

Standard ProSig-Object:

•PZB element

•Signal

•FMA component

•Switch element

•Accommodation

Object Representation: Row-oriented

Template:

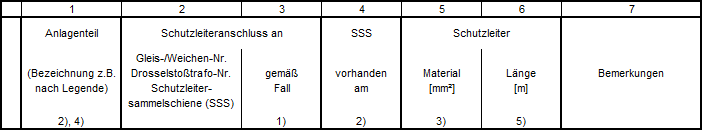

Illus.: Export view of the ProSig Engineer for the Table of Earthing Particulars


Description:

Currently only the descriptions of the standard ProSig objects are exported to the column '(description, e.g. based on legend).
