Block System Table
Contents
Design rules: Deutsche Bahn AG, Guideline 819.0102 (dated 01.03.2005)
Standard ProSig-Object:
•Block system
Linked ProSig-Objects:
•Signal
•Track route
•Overlap
•Locality
Object Representation: Row-oriented
Template:
Designation |
Paper size |
Objects represented per Sheet |
Streckenblock_297x590 |
Height:297 mm; Length: 590 mm |
20 |

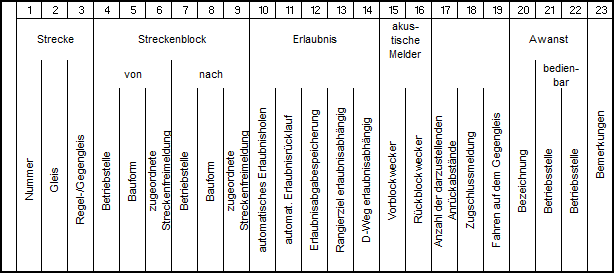

Illus.: Export view of the ProSig Engineer for the Block System Table
